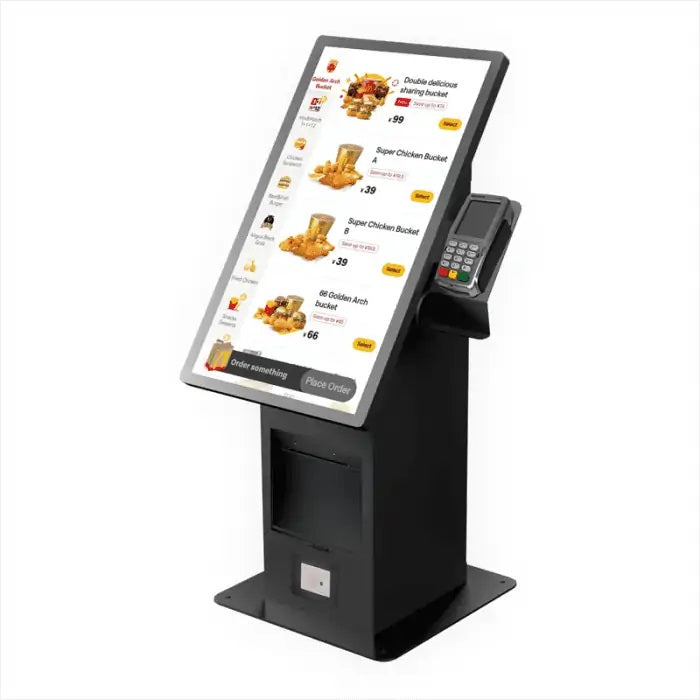

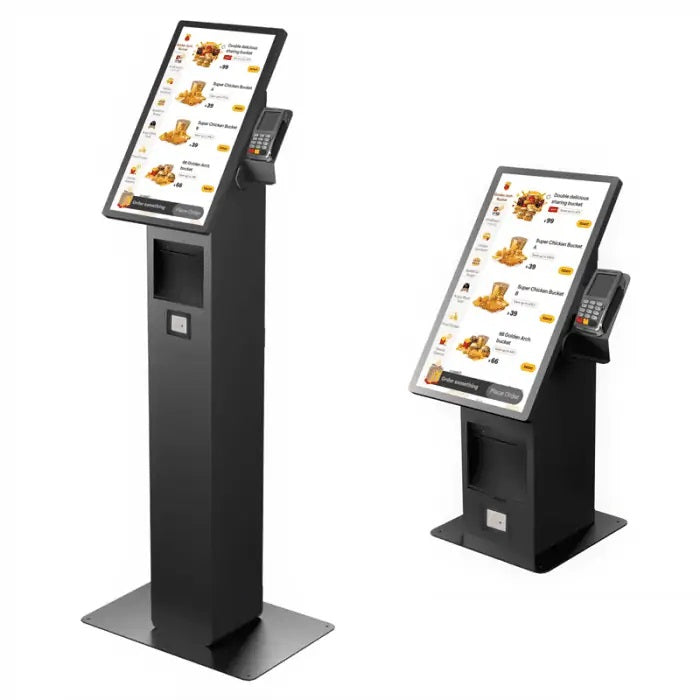

Self Service Ordering Kiosk

Size

L310×W310×H692(Countertop)

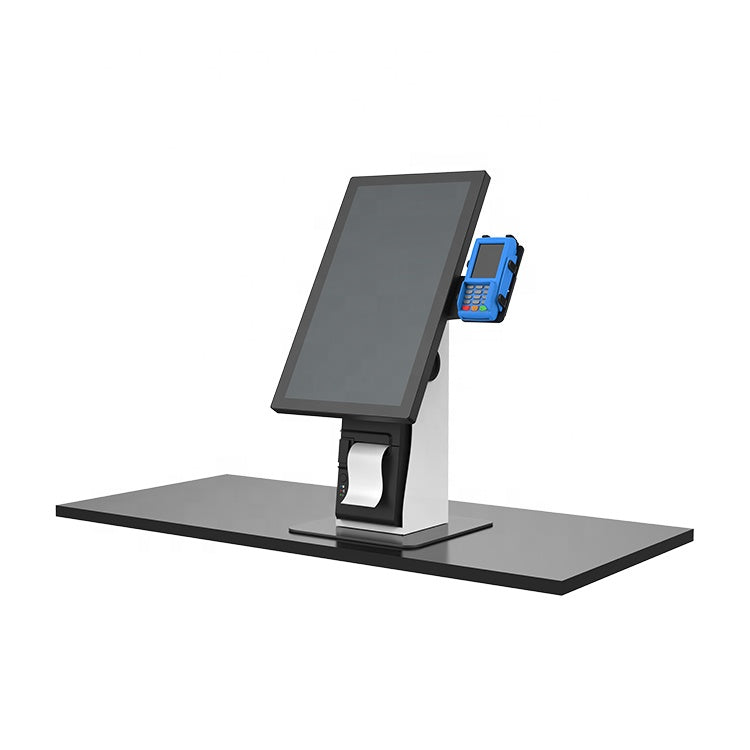

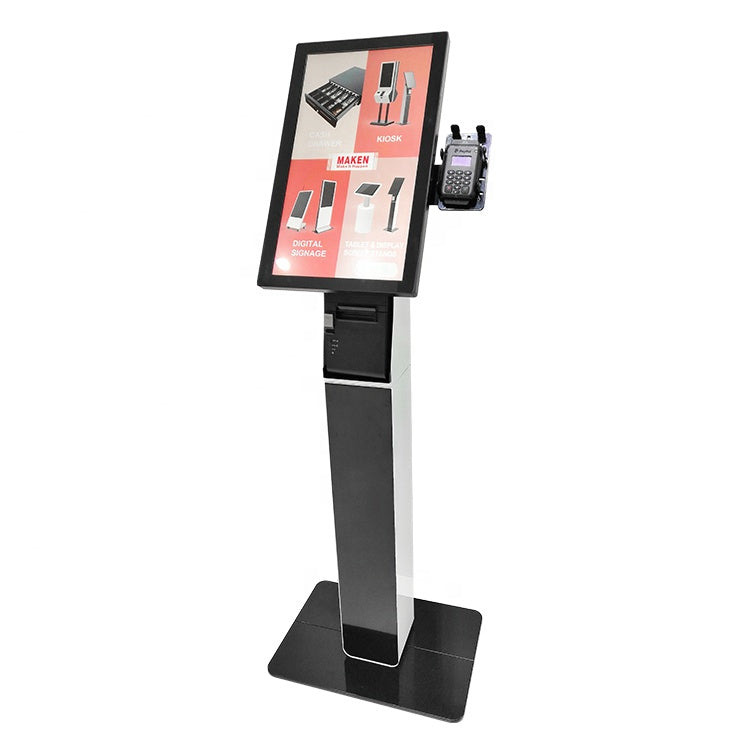

L540×W370×H1520(Floor-standing)

Card reader holder

Mounting on the backside of screen

Mounting Options

Floor standing/Countertop

OS Support

WIN 10(trial version)

Android 7.1

CPU

Intel i3, i5, i7

Rockchip RK3288,Cortex-A17 quad core,1.8GHz

System Memory

4G/8G

2G

Disk

128G(SSD)

8G

Speaker

5W*2

5W*2

Interface

USB*3/RJ45*1

USB*2/RJ45*1

Network

RJ45/WIFI

RJ45/WIFI

Touch screen

Projected Capacitive Touch(10 points)

Response time

10ms

LCD display Type

TFT-LCD

Response time

12ms

Display Screen size

21.5''

Viewing angle

H178º V178º

Max Resolution

1920x1080

Display Colors

16.7M

Aspect Ratio

16:9

Refresh Rate

60Hz

Brightness

300cd/m2

Panel Life

30000 hours

Contrast Ratio

3000:1

Voltage

AC100V-240V,50/60HZ

Power Consumption

<65W

Optional

Printer (standarded not provided), Card reader holder

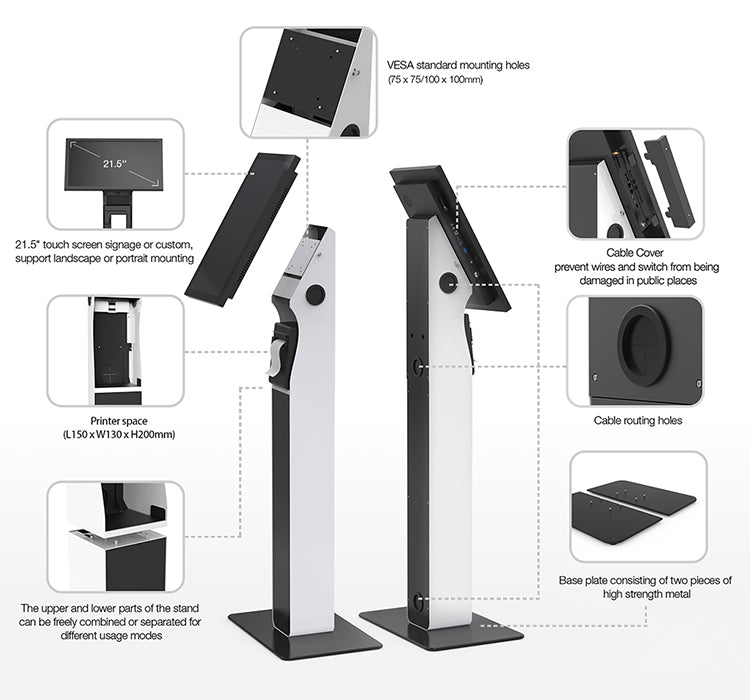

Space for cardreader/printer

Card reader is not provided and max size of card reader W100*L175

Printer is not provided and max size is W130*D150*H200 MM

Material

SPCC

Surface

Powder coated
